Pledco’s Black Diamond series is built on Chip-on-Board (COB) and Micro-in-Package (MIP) LED technology — the two most advanced packaging architectures available for fine pitch indoor LED displays. COB bonds LED chips directly onto the PCB without individual packaging, delivering superior contrast ratios, higher pixel density, better impact resistance and lower heat generation than traditional SMD indoor displays. MIP applies the same micro-chip approach in a surface-mount format, enabling pixel pitches from P1.5mm to P1.9mm with better uniformity and repairability than pure COB.

Available pixel pitches: P0.9mm, P1.2mm, P1.5mm (COB) and P1.5mm, P1.9mm (MIP) — covering every fine pitch indoor LED display application from sub-1mm ultra-close-range boardroom walls to large-format 8K control room displays viewed from 4–6 metres. Contrast ratio: up to 10,000:1. Colour gamut: ≥130% sRGB at P0.9mm. Lifespan: ≥100,000 hours.

Every Pledco indoor LED display panel is factory-calibrated using a Pledco-developed proprietary calibration recipe — not a generic manufacturer default. Calibration targets include REC709 (standard broadcast and corporate), REC2020 (wide gamut broadcast and cinema) and DCI P3 D65 (digital cinema and colour-critical XR production). Per-cabinet calibration data is stored on-board, so uniformity is maintained across the full display at installation and over time — without external calibration hardware required on-site.

Colour uniformity across the full display: ΔE≤3. Brightness uniformity: ≤5% variance cabinet-to-cabinet. RGBA module option on P0.9mm and P1.2mm extends gamut beyond standard RGB for virtual production and colour-critical museum and gallery applications. Low blue-light mode reduces 415–455nm emission for operator health in extended-use environments.

COB encapsulation significantly reduces heat generation per pixel versus SMD indoor displays — because the LED die-to-PCB bond is direct, with no individual package acting as a thermal insulator. Pledco’s Black Diamond COB series operates fan-free at P0.9mm and P1.2mm, making it suitable for acoustically sensitive environments including broadcast studios, theatres, museums, auditoriums and executive boardrooms where fan noise is unacceptable. Higher pitch MIP models use low-speed smart thermal fans that respond only to actual thermal load.

Cabinet engineering is optimised for tight-pitch installs in air-conditioned indoor environments. Die-cast aluminium alloy cabinets (768×768mm standard, 576×192mm narrow format) are precision-flatness machined to ±0.1mm tolerance — eliminating the visible cabinet-edge steps that cause brightness banding on lower-quality indoor LED displays. Front-access and rear-access configurations both supported for embedded wall and exposed-frame installation types.

Pledco is a built-to-order indoor LED display manufacturer. Non-standard cabinet formats, bespoke pixel pitches, custom structural configurations (portrait columns, kinetic ceiling systems, curved walls, floor LED panels) and OEM/ODM private-label manufacturing are all available through Pledco’s 50+ in-house engineering team and 20,000 SQM manufacturing facility. Pledco has delivered custom indoor LED systems for Google (15 HQ locations), Wynn Macau, Grand Lisboa Palace, The X Factor (USA broadcast), NHL venues and 50+ Fortune 100 companies.

Every OEM and ODM indoor LED project is assigned a dedicated project manager, mechanical engineer, software engineer and after-sales manager from day one. Full technical documentation — submittals, structural drawings, control system integration guides, commissioning checklists — is provided as standard. 15-year parts availability guaranteed from date of delivery on all Pledco indoor LED display products.

Indoor LED displays for retail, hospitality and casino environments must perform under high ambient light, continuous operation and demanding aesthetic standards. Pledco’s Phoenix and Telesto series cover commercial-grade indoor LED display applications from P1.5mm premium retail flagship stores to P3.9mm large-format shopping mall and casino floor installations. High brightness (800–1,500 nit adjustable) ensures visibility under retail spotlighting and hospitality ambient light. Auto-brightness control maintains colour accuracy as lighting conditions change through the day.

Verified Pledco hospitality and retail indoor LED installations include: Wynn Casino Macau (P4mm, 335 SQM custom kinetic ceiling), Grand Lisboa Palace Macau (P1.7mm, ×13 stainless steel portrait display columns) and La Vitrine Montreal (multi-zone lobby, column ring and portrait panel installation across Phase I and II). All delivered as OEM/ODM builds through the client’s system integration partner. Pledco has completed indoor LED installations for over 50 Fortune 100 companies across hospitality, luxury retail and casino environments worldwide.

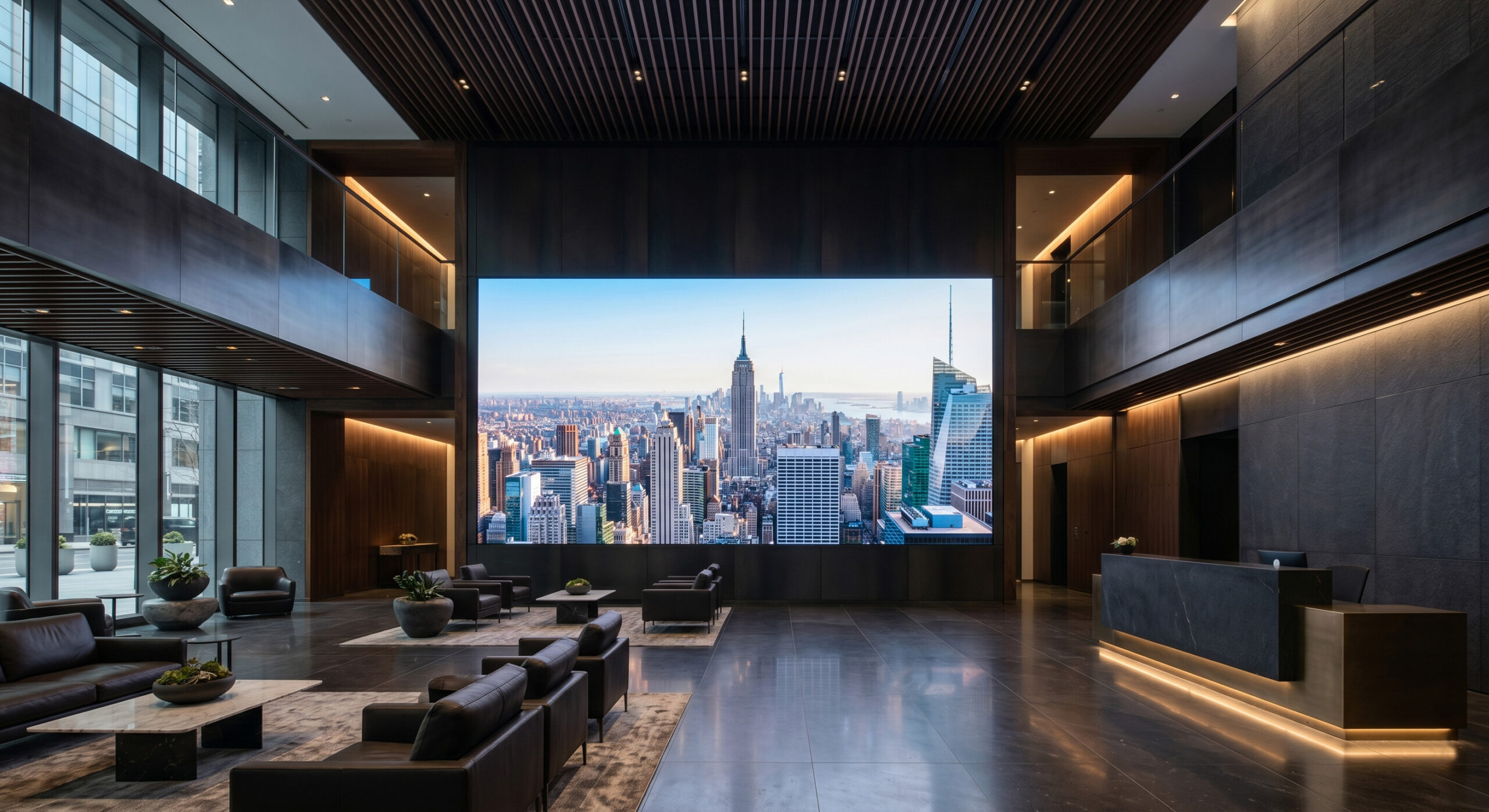

Pledco’s fine pitch indoor LED displays are the premium alternative to LCD video walls, projectors and large-format displays in corporate headquarters lobbies, executive boardrooms, conference rooms, experience centres and briefing centres. Zero bezels, true black levels at pixel-off and contrast ratios up to 10,000:1 deliver a visual quality that LCD video walls — with their visible seam lines — and projectors — with their washed-out blacks and ambient light sensitivity — cannot match.

For corporate boardrooms and executive meeting rooms, P0.9mm and P1.2mm COB displays provide full 4K resolution within standard room dimensions, viewable from as close as 0.9m with no visible pixel structure. Silent passive thermal management (fan-free at lower pitches) ensures zero noise in meeting environments. Front-access service means the display can be maintained without moving furniture or accessing rear wall space.

Pledco’s Black Diamond COB series is the technology of choice for XR virtual production LED walls and broadcast studio LED background displays. 7,680Hz refresh rate eliminates moiré and banding when captured by cinema cameras or broadcast cameras at any frame rate. RGBA module option (available on P0.9mm and P1.2mm) extends colour gamut for demanding virtual production colour pipelines. Low blue-light certification available for extended-operation studio environments.

Pledco has delivered LED video walls for broadcast productions including The X Factor (USA), GM Fashion Show (Mexico) and multiple OEM studio installations in the USA, UK, Netherlands and Japan — all as custom-format builds engineered around the studio’s camera, rigging and control system requirements. XR LED volume configurations include flat walls, curved cyc walls, ceiling tiles and floor LED panels with public support glass — all from a single manufacturer and a single project team.

Pledco’s Titan XR series is purpose-engineered for 24/7 mission-critical control room, command centre and operations centre LED display applications. Dual hot-swappable power supplies with dynamic load sharing ensure zero downtime — if a PSU fails, the display continues operating without interruption. Full dual-path signal redundancy eliminates single points of failure. Real-time per-pixel temperature, voltage and luminance monitoring detects anomalies before they become failures.

Control room LED video wall specifications: P1.2mm–P2.5mm pixel pitch, 8K×4K native canvas, ≥600 nit (adjustable down to 80 nit for operator comfort), uniformity ΔE≤3 across the full display, REC709 and REC2020 factory calibration. Cabinet sizes in 768×768mm standard format and 576×192mm narrow-form for multi-panel curved configurations common in network operations centres (NOC), security operations centres (SOC), traffic management systems and broadcast master control rooms.

Pledco indoor LED video walls are engineered to deliver native 4K (3,840×2,160) and 8K (7,680×4,320) resolution across standard cabinet configurations — no scaling, no upsampling. At P1.2mm and P1.6mm COB, an 8K×4K canvas requires approximately 9.2m × 4.6m of display surface — achievable within a standard corporate lobby, broadcast studio, command and control room or large auditorium. At P0.9mm, a 4K display fits within 3.5m × 2.0m for close-range boardroom and museum applications.

7,680Hz refresh rate on the Black Diamond series ensures flicker-free capture by broadcast cameras and cinema cameras at any shutter speed — critical for XR virtual production studios, television broadcast backgrounds, live event LED walls and any installation where video cameras are present. High greyscale at low brightness (16-bit greyscale processing) maintains colour accuracy and uniformity at reduced luminance levels for theatre, gallery and hospitality environments.
